Automatic Cut To Length Line Step Lap Transformer Core Cutting Machine
|
Dettagli:
Termini di pagamento e spedizione:
|
Descrizione di prodotto dettagliata
| Nome del prodotto: | tagliatrici del centro | Cutting mode: | step lap cutting |
|---|---|---|---|
| Strip thickness: | 0.23 ~ 0.35mm | Larghezza della striscia: | 40 ~ 400mm |
| Feeding speed: | 0 ~ 120m/min | Warranty period: | 12 months |
| Cutting burring: | less than 0.02mm | Total power: | 15kw |
Automatic Cut To Length Line Step Lap Transformer Core Cutting Machine
Introduction of transformer core cutting machine HJX400-LLB
Transformer core cutting machine HJX400-LLB is a special cutter equipment, which is mainly used to cut silicon steel strip to make transformer core’s legs. This kind of cutting machine is also called cut to length line. The core cutting machine is provided with PLC control system. The core cutting machine is with stepping function to cut step lap core’s legs. The core cutting machine features high automation and easy operation.
Main components of transformer core cutting machine HJX400-LLB
- Hydraulic dereeler
- Slopping feed device
- Punch unit
- Shearing unit
- Outlet platform
- Width adjusting system
- Pneumatic system
- Electric control system
Technical parameters of transformer core cutting machine HJX400-LLB
Typical standard specifications of HJX400-LLB are shown below and the transformer core cutting machine can also be manufactured as requested.
| Two-end coil dereeler capacity | 1000kg/end |
| Supply coil ID | Φ500mm |
| Maximum supply coil OD | Φ1200mm |
| Cutting heads | 45+ ,45- , and triangle |
| Cutting thickness | 0.23 ~ 0.35 mm |
| Cutting width | 40 ~ 400 mm |
| Cutting length | 350 ~ 9999 mm |
| Punch diameters | Φ10mm, Φ14mm and Φ22mm, interchangeable |
| Maximum feeding speed | 120 m/min |
| Cutting angle accuracy | ±0.05° |
| Cutting length accuracy | ±0.10 mm |
| Cutting burring | ≤0.02 mm |
| Installation capacity | 15 kw |

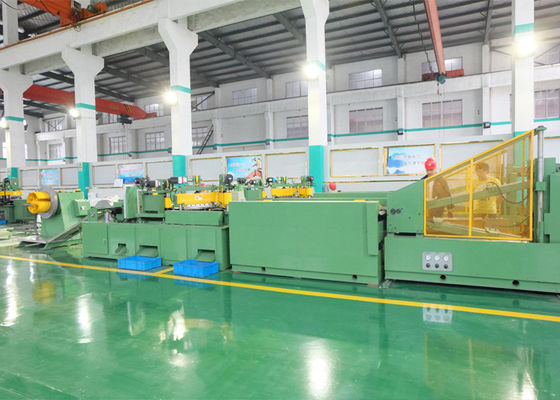

Fig 1:Cut to length line HJX400-LLB's side view
Fig 2: Cut to length line HJX400-LLB's coil dereeler
